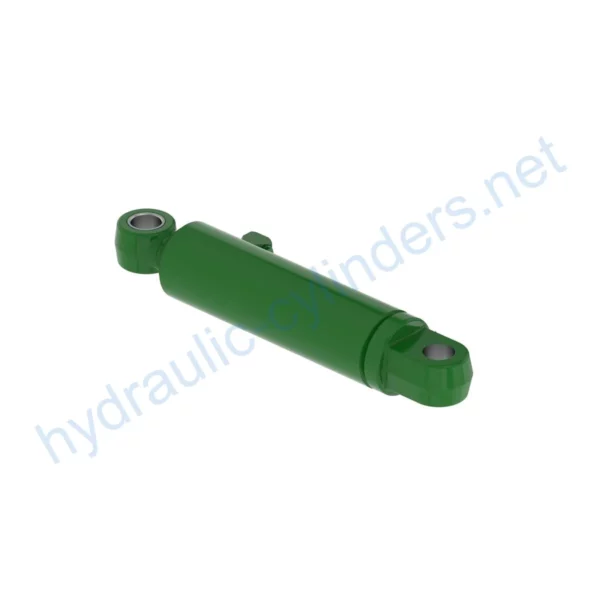

Replacement Of RE231242 Lift Hydraulic Cylinder

Product Definition

The Replacement Of RE231242 Lift Hydraulic Cylinder is a hydraulic cylinder designed to replace damaged or worn-out cylinders in various models of equipment, including 9230, 9330, 9430, 9430T, 9530, 9530 SCRAPER, 9530T, 9630, 9630 SCRAPER, and 9630T. It plays a vital role in restoring the normal operation and performance of the equipment.

Specifications and Models

Weight: 64 lb

Height: 4.5 in

Width: 6.5 in

Length: 25.5 in

Models: 9230, 9330, 9430, 9430T, 9530, 9530 SCRAPER, 9530T, 9630, 9630 SCRAPER, and 9630T

Product Features

• Improved Equipment Performance: Replacing damaged or worn hydraulic cylinders can restore the equipment’s normal operational capabilities, ensuring optimal performance in various applications.
• Enhanced Safety: Regularly replacing hydraulic cylinders reduces safety hazards associated with cylinder failures, ensuring the safety of operators and equipment.
• Overload Protection: New cylinder designs often incorporate better overload protection mechanisms, improving safety measures.
• Quick Installation: Modern hydraulic cylinders are designed for easy installation and replacement, minimizing downtime.
• Standardized Components: Many hydraulic cylinders are standardized products, making it easier to obtain replacement parts in the market.

Applications

1. Excavators: Hydraulic cylinders on excavator arms or buckets may become damaged due to prolonged use or overload, requiring replacement to restore proper operation.
2. Cranes: Hydraulic cylinders on crane boom experience wear and tear during frequent lifting and lowering processes, necessitating regular replacement for safety reasons.
3. Tractors: Hydraulic cylinders on front-end loaders of tractors may develop leaks or performance degradation due to continuous lifting and tilting operations, requiring replacement.
4. Harvesters: In the harvesting process, hydraulic systems endure high pressures, and cylinders may suffer fatigue, necessitating timely replacement to maintain work efficiency.
5. Automated Production Lines: Hydraulic cylinders are used to control robotic arms and other automated equipment. Cylinder failures can significantly impact production efficiency, requiring immediate replacement.
6. Die Casting Machines: Hydraulic cylinders in high-pressure and high-temperature environments may experience performance degradation. Regular replacement ensures product quality.
7. Mining Equipment: Hydraulic cylinders are used for lifting and moving heavy loads in mining equipment. Due to harsh working conditions, regular inspections and replacements are necessary to avoid equipment failures.
8. Bulldozers: Hydraulic cylinder wear on bulldozer blades can lead to decreased pushing ability, requiring prompt replacement to maintain operational efficiency.

Maintenance Tasks

1. Regular Inspection: It is crucial to periodically inspect the hydraulic cylinders for any signs of wear, damage, or leaks.
2. Proper Lubrication: Applying appropriate lubrication helps optimize cylinder performance and extends its lifespan.
3. Seal Replacement and Calibration Check: Regularly replacing seals and performing calibration checks ensures proper functioning of the hydraulic cylinder.

Safety Considerations and Environmental Factors

When using hydraulic cylinders, following safety measures is of utmost importance to prevent accidents and ensure operator well-being. Additionally, considering environmental factors when selecting and using cylinders helps minimize their impact.

Troubleshooting and Common Issues

Common issues that may arise with hydraulic cylinders include leaks, insufficient power, and abnormal noises. Here are some troubleshooting tips and solutions:

• Leakage: Inspect the seals and connections for any signs of damage or wear. Replace any faulty components and ensure proper tightening.
• Insufficient Power: Check for any restrictions in the hydraulic system, such as clogged filters or insufficient fluid levels. Address any issues and ensure proper fluid pressure.
• Abnormal Noises: Unusual noises can indicate internal damage or misalignment. Inspect the cylinder for any signs of wear or misalignment and take appropriate action.

Design Considerations and Selection Criteria

When selecting hydraulic cylinders, several factors should be considered, including load-bearing capacity, sealing effectiveness, durability, safety features, and ease of maintenance. Each aspect is vital for optimal performance and longevity.

Sealing and Lubrication

Hydraulic cylinders utilize various sealing components such as piston seals and rod seals made of wear-resistant materials like polyurethane and nitrile rubber. The cylinder body and threaded ends undergo fine treatment to enhance wear resistance. Regular lubrication with the appropriate hydraulic oil is necessary to ensure smooth operation.

Regular Inspection and Preventive Maintenance

Regularly inspecting and conducting preventive maintenance tasks is crucial for maintaining hydraulic cylinder performance. Proper installation, lubrication, and adjustment are vital. Providing guidance on aligning the cylinder correctly during installation and recommending the use of suitable mounting brackets to secure the cylinder helps enhance performance. Recommended inspection, repair, and replacement procedures, as well as offering replacement parts and rebuilding services, contribute to extending the lifespan of the cylinder.

Installation Guide

Follow these steps for correct installation:

1. Ensure the mounting surface is clean and free of debris.
2. Align the hydraulic cylinder properly with the equipment.
3. Secure the cylinder using appropriate mounting brackets.
4. Tighten all connections to the manufacturer’s specifications.
