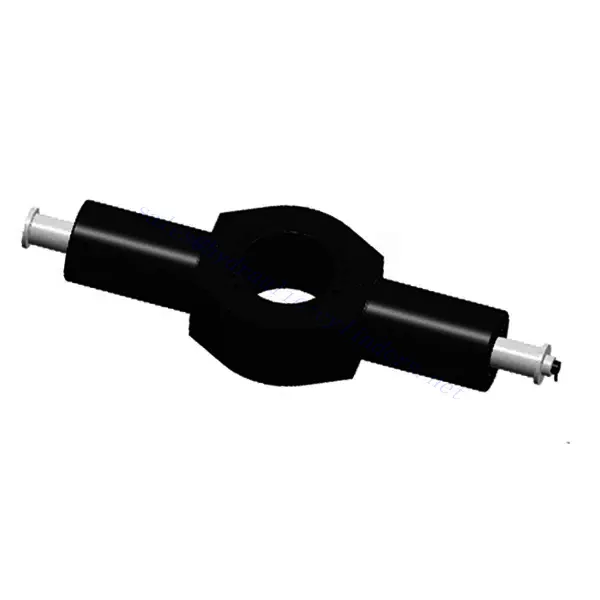

Press Rear Side Shift Cylinder

The press rear side shift cylinder is a cutting-edge tool designed to enhance efficiency and precision in pressing operations. With its innovative rear side shifting capability, this cylinder allows for seamless adjustment of workpieces during pressing, ensuring accurate alignment and reducing setup time.

The press rear side shift cylinder is a game-changer in pressing operations. With its rear side shifting capability, accurate alignment, adjustable shifting range, and swift responsiveness, this cylinder empowers operators to achieve precise and efficient pressing results. By following the recommended usage methods and maintenance practices, you can maximize the performance, longevity, and safety of the press rear side shift cylinder in your pressing applications. Elevate your pressing capabilities and experience superior alignment and efficiency with this state-of-the-art cylinder.

Press Rear Side Shift Cylinder Key Characteristics:

1. Rear Side Shifting Capability:
   • The press rear side shift cylinder is specifically engineered to facilitate precise rear side shifting of workpieces during pressing operations.
   • It empowers operators to effortlessly adjust the position of the workpiece, ensuring optimal alignment and minimizing the need for manual adjustments.
2. Accurate Alignment:
   • This cylinder ensures accurate alignment of the workpiece, reducing the risk of misalignment and enhancing overall precision.
   • The precise alignment achieved by the press rear side shift cylinder results in improved product quality and reduced scrap rates.
3. Adjustable Shifting Range:
   • The cylinder offers an adjustable shifting range, allowing operators to customize the extent of rear side shifting based on specific application requirements.
   • The flexibility to adjust the shifting range ensures compatibility with different workpiece sizes, shapes, and pressing needs.
4. Swift and Responsive:
   • The press rear side shift cylinder features a swift and responsive shifting mechanism, enabling quick adjustments during pressing operations.
   • The rapid shifting action reduces overall cycle time, maximizing productivity and throughput in pressing applications.

Press Rear Side Shift Cylinder Parameter:

Press Cylinder Factory:

Usage Method Of Press Rear Side Shift Cylinder:

• Installation:
  • Securely mount the press rear side shift cylinder in the desired location, ensuring proper alignment with the pressing equipment.
  • Connect the hydraulic lines according to the manufacturer’s instructions, ensuring correct fluid flow and preventing any leaks.
• Shifting Adjustment:
  • Familiarize yourself with the shifting adjustment mechanism provided by the cylinder.
  • Typically, adjustments can be made using control knobs, handwheels, or digital controls.
  • Follow the manufacturer’s guidelines to make precise rear-side shifting adjustments based on the workpiece dimensions and alignment requirements.
• Workpiece Alignment and Shifting:
  • Position the workpiece on the press bed, ensuring initial alignment with the cylinder.
  • Activate the cylinder to engage the shifting mechanism and smoothly adjust the workpiece to the desired rear side position.
  • Verify the alignment visually or using measuring tools to ensure accurate rear-side shifting.
• Pressing Operation:
  • Once the workpiece is properly aligned and shifted, proceed with the pressing operation following your standard procedures.
  • The press rear side shift cylinder will maintain the alignment and stability of the workpiece throughout the pressing process, ensuring consistent results.

How To Find Seal Kit For Hydraulic Cylinder?

Finding a seal kit for a hydraulic cylinder involves identifying the make and model of the cylinder, researching reputable suppliers or manufacturers, and obtaining the correct seal kit based on the cylinder’s specifications. Here’s a step-by-step guide on how to find a seal kit for a hydraulic cylinder:

1. Identify the Cylinder Information:
   • Determine the make and model of the hydraulic cylinder for which you need a seal kit.
   • Look for any identifying marks, labels, or engraved information on the cylinder itself.
   • If you have the original equipment manufacturer (OEM) documentation or part number, it can be helpful in the search process.
2. Research Reputable Suppliers:
   • Start by researching reputable hydraulic seal suppliers or manufacturers.
   • Look for suppliers that specialize in hydraulic seals and have a wide range of products available.
   • Online search engines, industry directories, and hydraulic equipment forums can be valuable resources for finding reputable suppliers.
3. Contact the Cylinder Manufacturer or OEM:
   • If possible, reach out to the manufacturer of the hydraulic cylinder or the original equipment manufacturer (OEM) for guidance.
   • Contact their customer service department or technical support to inquire about the availability of seal kits for your specific cylinder model.
   • Provide them with the make, model, and any other relevant information about your cylinder to assist them in identifying the correct seal kit.
4. Gather Cylinder Specifications:
   • Determine the specific specifications of the hydraulic cylinder for which you need a seal kit.
   • Note down details such as the cylinder bore diameter, rod diameter, and the number and types of seals required.
   • Measure the dimensions of the existing seals, if possible, to ensure accurate identification and selection of the seal kit.
5. Search Online Seal Suppliers:
   • Utilize online seal supplier websites and search for seal kits based on the specifications of your hydraulic cylinder.
   • Enter the make, model, or dimensions of the cylinder into the search filters to narrow down the available options.
   • Explore the product descriptions, specifications, and compatibility information provided by the suppliers to ensure a proper match.
6. Verify Compatibility:
   • Once you have identified a potential seal kit, verify its compatibility with your hydraulic cylinder.
   • Cross-reference the specifications and dimensions of the seal kit with the information gathered from your cylinder.
   • Ensure that the seal kit includes all the necessary seals required for your cylinder’s specific configuration.
7. Order and Install the Seal Kit:
   • Place an order for the seal kit from the chosen supplier or manufacturer.
   • Provide accurate information, including the cylinder specifications and any other required details, to ensure the correct seal kit is provided.
   • Follow the supplier’s instructions for payment, shipping, and delivery.
   • Once the seal kit arrives, carefully follow the installation instructions provided by the supplier or manufacturer to replace the seals in your hydraulic cylinder.

Capability & Capacity Of Factory:

(1) Assembly

We have a first-class independent research and development assembly platform. The hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one automatic tilt cylinder assembly line, with a designed annual production capacity of 1 million pieces. The special cylinder workshop is equipped with various specifications of a semi-automatic cleaning assembly system with a designed annual production capacity of 200,000 and equipped with famous CNC machining equipment, a machining center, a high-precision cylinder processing special equipment, a robot welding machine, an automatic cleaning machine, automatic cylinder assembly machine, and automatic painting production line. Existing critical equipment of more than 300 sets (sets). The optimal allocation and efficient use of equipment resources ensure the accuracy requirements of products and meet the high-quality needs of products.

(2) Machining

The machining shop is equipped with a customized inclined rail turning center, machining center, high-speed honing machine, welding robot, and other related equipment, which can handle the processing of cylinder tubes with a maximum inner diameter of 400mm and a maximum length of 6 meters.

(3) Welding

(4) Painting & coating

With small and medium-sized cylinder automatic water-based paint coating lines, to achieve automatic robot loading and unloading and automatic spraying, the design capacity of 4000 pieces per shift;
We also have a semi-automatic paint production line for large cylinders powered by a power chain, with 60 cases per shift design capacity.

(5) Testing

We have first-class inspection facilities and test beds to ensure that the performance of the cylinder meets the requirements.

We are one of the best hydraulic cylinder manufacturers. We can offer comprehensive hydraulic cylinders. We also provide corresponding agricultural gearboxes. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
