Método de cabeza Cilindro hidráulico metalúrgico tipo orquídea

The head method orchid-type metallurgical hydraulic cylinder is a versatile, high-performance component explicitly designed for metallurgical applications. The product provides superior functionality, precise control, and reliable operation in demanding industrial environments. Its head method of orchid design ensures optimum performance, stability, and safety in the process.

The hydraulic cylinder of Y-HG1 series metallurgical equipment is a double-acting piston cylinder; the cylinder diameter is generally within the range of 40~320mm, and the working pressure is <=16MPA. The hydraulic oil system can transport the active medium, such as emulsion, and install different models, such as flanges, earrings, pins, and release devices (base).

High precision CNC honing machine, automatic welding machine, vertical, horizontal machining center, gantry machining center, CNC lathe, and other processing equipment, product quality is stable and guaranteed.

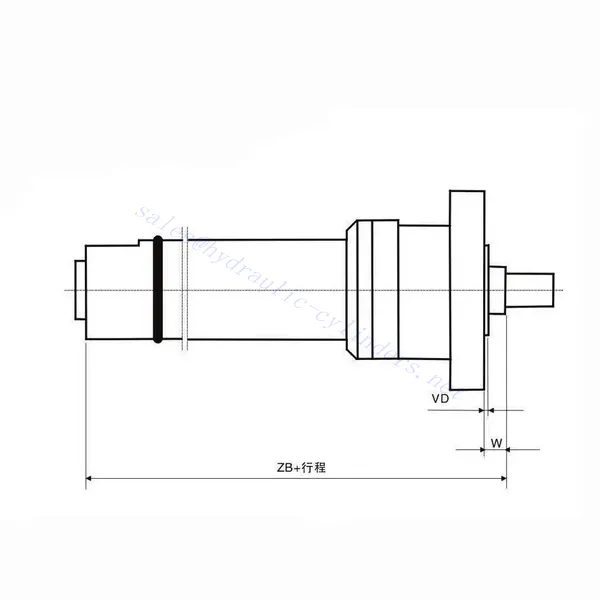

Head Method Orchid Type Metallurgical Hydraulic Cylinder Parameter:

Método de cabeza Cilindro hidráulico metalúrgico tipo orquídea Usage Method:

1. Mounting and Installation:
   • Determine the appropriate installation position of the hydraulic cylinder according to the specific metallurgical application and equipment requirements.
   • Ensure the mounting surface is clean, flat, and can withstand the cylinder load.
2. Connection to Hydraulic System:
   • Connect the metallurgical hydraulic cylinder to the hydraulic system using a compatible hydraulic hose or pipe.
   • Ensure proper alignment and secure connection to prevent leakage.
3. System Integration and Calibration:
   • According to the manufacturer’s guidelines, integrate metallurgical hydraulic cylinders into metallurgical equipment or systems.
   • Calibrate the system to achieve desired performance and operating parameters.
4. Operating the Cylinder:
   • Start the hydraulic system. Apply pressure to start the movement of the hydraulic cylinder.
   • Control the cylinder’s extension, retraction, and positioning through the hydraulic control system.

Método de cabeza Cilindro hidráulico metalúrgico tipo orquídea Maintenance:

1. Regular Inspection:
   • Conduct routine inspections of the metallurgical hydraulic cylinder to check for leaks, signs of wear, or damage.
   • Inspect the mounting brackets, fasteners, and connections to ensure they are secure and functioning correctly.
2. Lubrication:
   • Follow the manufacturer’s recommendations regarding lubrication intervals and the type of lubricant to use
   • Apply lubricant to the necessary parts, such as the piston rod, seals, and bearings, to reduce friction and ensure smooth operation.
3. Cleaning:
   • Keep metallurgical hydraulic cylinders and their surrounding areas clean from dirt, debris, and contaminants that may affect their performance.
   • Use appropriate cleaning methods and materials to avoid damaging the cylinder or its components.

How To Replace Hydraulic Cylinder Seals?

Replacing hydraulic cylinder seals requires careful attention to detail and adherence to proper procedures. Here’s a step-by-step guide to help you with the process:

1. Gather the Necessary Tools and Materials:
   • New seals for the hydraulic cylinder.
   • Seal installation tool kit (if available).
   • Clean rags or towels.
   • Proper personal protective equipment, such as gloves and safety glasses.
2. Prepare the Work Area:
   • Ensure you have a clean and well-lit workspace to perform the seal replacement.
   • Clean the exterior of the hydraulic cylinder to prevent dirt and debris from entering during the process.
3. Depressurize the Hydraulic System:
   • Shut off the hydraulic power source and relieve the pressure from the system.
   • Follow the manufacturer’s instructions or consult the equipment manual for the proper depressurization procedure.
4. Remove the Cylinder:
   • Disconnect any hydraulic hoses or fittings attached to the cylinder.
   • Unfasten the mounting bolts or brackets securing the cylinder to the equipment.
   • Carefully remove the cylinder from its mounting location.
5. Disassemble the Cylinder:
   • If necessary, remove any external components or accessories attached to the cylinder, such as rod end caps or piston heads.
   • Inspect and clean the cylinder thoroughly to remove any dirt or contaminants.
6. Remove the Old Seals:
   • Identify the location of the seals on the cylinder.
   • Use an appropriate tool, such as a seal pick or seal removal tool, to carefully pry out the old seals.
   • Take note of the seal orientation and arrangement for properly installing the new seals.
7. Clean and Inspect:
   • Clean the seal grooves and the surrounding areas using a lint-free cloth or rag.
   • Inspect the cylinder bore and other components for any signs of damage or wear.
   • If any damage is detected, consult a professional or replace the damaged components.
8. Install the New Seals:
   • Apply a thin layer of hydraulic oil or lubricant to the new seals to aid their installation.
   • Carefully place the new seals into their grooves, ensuring they are appropriately seated and aligned correctly.
   • Use a seal installation or suitable tool with a flat, smooth surface to gently press the seals into place.
   • Take care not to damage or distort the seals during the installation process.
9. Reassemble and Reinstall the Cylinder:
   • Reassemble any disassembled components or accessories onto the cylinder.
   • Reinstall the cylinder into its mounting location, ensuring proper alignment and secure fastening.
   • Reconnect the hydraulic hoses or fittings, ensuring they are correctly tightened and secured.
10. Test and Inspect:

• Restore the hydraulic system’s power and pressurize it according to the manufacturer’s instructions.
• Test the cylinder’s operation and check for any signs of leaks or abnormal behavior.
• If any issues are detected, troubleshoot or consult a professional for further assistance.

Capacidad de la fábrica:

(1) Montaje

We have a first-class independent research and development assembly platform. The hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one automatic tilt cylinder assembly line, with a designed annual production capacity of 1 million pieces. The special cylinder workshop is equipped with various specifications of a semi-automatic cleaning assembly system with a designed annual production capacity of 200,000 and equipped with famous CNC machining equipment, a machining center, a high-precision cylinder processing special equipment, a robot welding machine, an automatic cleaning machine, automatic cylinder assembly machine, and automatic painting production line. Existing critical equipment of more than 300 sets (sets). The optimal allocation and efficient use of equipment resources ensure the accuracy requirements of products and meet the high-quality needs of products.

(2) Mecanizado

El taller de mecanizado está equipado con un centro de torneado de carril inclinado personalizado, un centro de mecanizado, una máquina de bruñido de alta velocidad, un robot de soldadura y otros equipos relacionados, que pueden procesar tubos cilíndricos con un diámetro interior máximo de 400 mm y una longitud máxima de 6 metros.

(3) Soldadura

(4) Pintura y revestimiento

Con pequeñas y medianas líneas de cilindros automáticos de recubrimiento de pintura a base de agua, para lograr la carga y descarga automática de robots y pulverización automática, la capacidad de diseño de 4000 piezas por turno;
También disponemos de una línea semiautomática de producción de pintura para grandes cilindros accionada por cadena, con una capacidad de diseño de 60 cajas por turno.

(5) Pruebas

Disponemos de instalaciones de inspección y bancos de pruebas de primera clase para garantizar que el rendimiento del cilindro cumple los requisitos.

We are one of the best metallurgical hydraulic cylinder manufacturers. We can offer comprehensive metallurgical hydraulic cylinder stock. We also provide corresponding cajas de cambios agrícolas. We have exported our products to clients worldwide and earned a good reputation because of our superior product quality and after-sales service. We welcome customers at home and abroad to contact us to negotiate business, exchange information, and colabore con nosotros!
